Honeywell HON-9000 Controller

Written by PersoniWay11 mar 2025

The HON-9000 controller is a versatile solution for building automation, providing efficient global design, increased performance with a quad-core processor, and seamless integration with existing systems. It supports various communication protocols, including BACnet IP, MS/TP, Modbus RTU, Modbus TCP, KNX, LonWorks (LON Card not included), and SNMP.

Description

The Honeywell HON-9000 is a compact, embedded IoT controller and server platform designed to connect multiple and diverse devices and sub-systems. It offers integrated control, supervision, data logging, alarming, scheduling, and network management, all optimized for the Niagara 4 Framework.

Key Features

Quad-core processor for enhanced performance
Integrated control, supervision, data logging, alarming, scheduling, and network management
Supports multiple communication protocols: BACnet IP, MS/TP, Modbus RTU, Modbus TCP, KNX, LonWorks, and SNMP
Optimized for Niagara 4 Framework
Modular design for easy installation and integration

Technical Specifications

Processor: Quad-core
Memory: Double storage and RAM compared to previous models
Communication Ports: Two 10/100/1000 MB Ethernet ports, two RS-485 serial ports
Wireless Interface: Optional (can be ordered without)
Expansion Modules: Compatible with existing modules; supports up to four option modules for additional communications ports, including LonWorks and IO-R
Operating System: Optimized for Niagara 4.13u2 and higher
Power Supply: Global compatibility
Installation: Tool-less, modular design for easy installation and integration

Applications

Building Management Systems (BMS)
Energy Management
HVAC Control
Lighting Control
Integration of diverse devices and sub-systems

Resources

📄 Datasheet: HON-9000 Controller Datasheet
🏢 Official Manufacturer: Honeywell

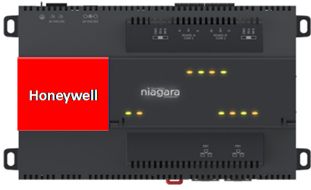

📷 Product Image:

Honeywell HON-9000
HON-9000 controller
Honeywell IoT platform

Conclusion

For further details on the Honeywell HON-9000, please refer to the official datasheet and manufacturer's website.
