Overview
This article compares the ECB-600 and Spyder Model 7 VAV, two advanced controllers from Distech Controls and Honeywell, to help integrators and facility managers choose the best solution for their building automation or HVAC control needs.
| Feature | Distech Controls ECB-600 | Honeywell Spyder Model 7 VAV Controller |
|---|---|---|
| Type | BACnet MS/TP Programmable Controller | Programmable VAV Controller with Integrated Actuator |
| Best Use Case | General HVAC control, AHUs, RTUs, VAVs, Chillers | Variable Air Volume (VAV) applications |
| Communication | BACnet MS/TP (RS-485) | BACnet/IP, BACnet MS/TP, Modbus RTU, Sylk™ |
| Inputs/Outputs | 16 universal inputs, 10 outputs (6 universal, 4 digital) | 7 universal I/Os, 5 solid-state relays |
| Connectivity | RS-485 for BACnet communication | BACnet/IP, MS/TP, Bluetooth®, Sylk™, Modbus RTU |
| Processor | 32-bit Microcontroller | Niagara WEBs-N4 Compatible |
| Memory | Non-volatile RAM for program retention | Not specified |
| Power Supply | 24VAC/DC | 20–30 VAC; 50/60 Hz |
| Programming | EC-gfxProgram (Graphical Programming) | Niagara WEBs-N4 |
| Mounting | DIN-Rail or Panel Mounting | Panel Mounting |
| Web-Based Management | No direct web interface | Yes (Niagara framework) |
3. Key Differences
Use Case & Applications
| Application | Distech Controls ECB-600 | Honeywell Spyder Model 7 VAV Controller |
|---|---|---|
| Building Automation | ✅ Ideal for general HVAC and BMS applications | ❌ Primarily focused on VAV applications |
| HVAC Equipment Control | ✅ Yes, direct control of HVAC units | ❌ Limited to VAV control |
| Variable Air Volume (VAV) Control | ✅ Supports VAV with extra configuration | ✅ Optimized for VAV with integrated actuator |
| Remote Web Access | ❌ No web interface | ✅ Supports Niagara web-based management |
| Standalone Use | ✅ Fully programmable standalone controller | ✅ Standalone VAV controller |
Standalone Control vs. Dedicated VAV
- The ECB-600 is a general-purpose programmable controller for various HVAC applications.
- The Spyder Model 7 VAV is specifically designed for Variable Air Volume (VAV) control with an integrated actuator and airflow sensor.
Programming & Communication
- ECB-600 uses BACnet MS/TP and is programmed using EC-gfxProgram.
- Spyder Model 7 VAV supports BACnet/IP, BACnet MS/TP, Modbus RTU, and Sylk™, and is Niagara WEBs-N4 programmable.
I/O Capacity
- ECB-600 features 16 inputs and 10 outputs, suitable for AHUs, RTUs, and Chillers.
- Spyder Model 7 VAV has 7 universal I/Os and 5 solid-state relays, optimized for VAV control.
Web & Remote Access
- ECB-600 does not have a web-based interface.
- Spyder Model 7 VAV integrates with Niagara, allowing for web-based remote access.
1. Distech Controls ECB-600 Overview
The ECB-600 is a BACnet MS/TP programmable controller designed for HVAC and building automation applications. It is well-suited for medium to large systems requiring multiple inputs and outputs for comprehensive control.
Key Benefits
- Supports 16 universal inputs and 10 outputs for direct control of HVAC systems.
- Native BACnet MS/TP support for easy integration into building automation systems.
- Fully programmable using EC-gfxProgram for custom control sequences.
- Ideal for Air Handling Units (AHUs), Rooftop Units (RTUs), VAV Systems, and Chiller/Boiler Plants.
2. Honeywell Spyder Model 7 VAV Controller Overview

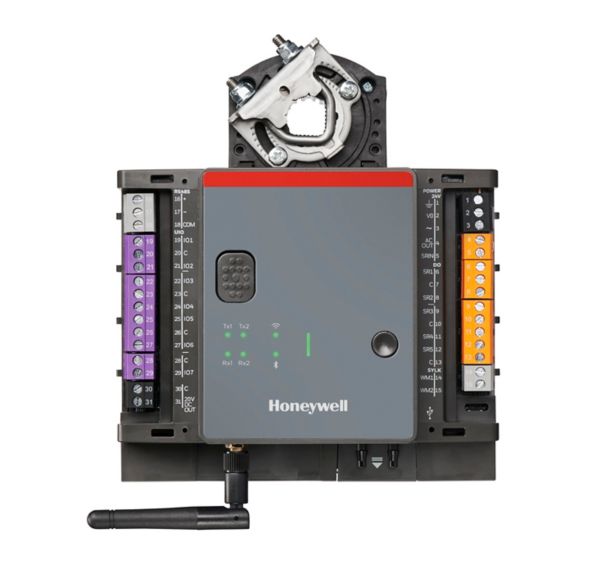

The Spyder Model 7 VAV Controller is a programmable room controller specifically designed for VAV applications. It features an integrated actuator and airflow sensor, making it an all-in-one solution for modern HVAC control.
Key Benefits
- Integrated actuator and airflow sensor for precise VAV control.
- Multi-protocol support: BACnet/IP, BACnet MS/TP, Modbus RTU, Sylk™.
- Wireless configuration with Bluetooth® Low Energy.
- Field-replaceable airflow sensor simplifies maintenance.
- Fully programmable using the Niagara framework.
4. Which Controller Should You Choose?
Choose the Distech ECB-600 if you need:
- A fully programmable BACnet MS/TP controller for general HVAC control.
- Direct control of air handling units, VAVs, RTUs, or chillers.
- A controller that operates independently in a BACnet-based building automation system.
Choose the Honeywell Spyder Model 7 VAV if you need:
- A dedicated VAV controller with an integrated actuator and airflow sensor.
- BACnet/IP connectivity and Niagara WEBs-N4 integration for web-based control.
- A compact, all-in-one solution for zone-based HVAC control.
5. Conclusion
Both devices serve different purposes:
- The ECB-600 is a BACnet MS/TP controller for general HVAC automation.
- The Spyder Model 7 VAV is a dedicated VAV controller with an integrated actuator.
Final Recommendation
- If you need a general-purpose HVAC controller, choose the ECB-600.
- If you need an all-in-one VAV solution, choose the Spyder Model 7 VAV.
